詳細情報 |
|||
| 重さ: | 750 kg | コアコンポーネント: | plc、モーター |
|---|---|---|---|
| 機械のサイズ: | 3200*2200*2500mm | 幅を切る: | 2400のMm |
| 切断長: | 30センチミット | 切断速度: | 縦カット10m/min、横カット5s/カット |
| 機械重量: | 600 kg | マックスパワー: | 1.8 kW |
| 電圧: | 380V/50Hz、三相 | PLCインターフェイス: | 5インチ色のタッチ画面 |
| 物質的な給餌: | 同期圧力バー | 機械設計: | 最適化されたボックス形状 |
| モデル: | YTCM96-C | 切断タイプ: | クロスカット、スリット、エッジカット |
| 段階: | 3相 | ||
| ハイライト: | computerized fabric cutting machine,edge cutting machine for textiles,computerized fabric trimmer with warranty |
||
製品の説明

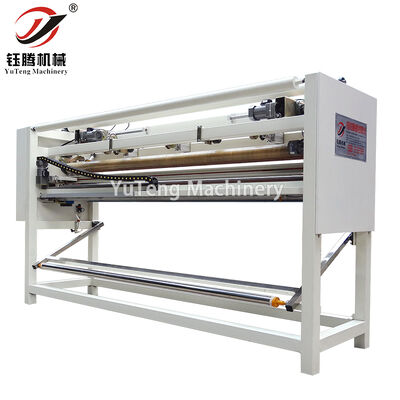

Computerized Fabric Edge Cutting Machine
Product Features
- 5-inch color touch screen PLC interface for easy operation
- CE-certified computer materials, electrical components, and motors for extended service life
- Electric length adjustment for both cutting length and width
- Synchronous pressure bar for even material feeding and smooth cutting, especially for thin material edge trimming
- Optimized box-shaped design improves running speed and cutting quality with higher efficiency
Applications
Ideal for seat covers, sofa cushions, quilt covers, bedcovers, home decoration, export packaging, bedding processing, and automatic cutting after sewing. Suitable for cross-cutting, slitting, edge cutting, quilting products, and composite products. Can also be used as a standalone machine.
Technical Specifications
| Model | YTCM96-C |
|---|---|
| Machine Dimensions (L×W×H) | 3200×2200×2500 mm |
| Cutting Width | 2400 mm (customizable) |
| Cutting Length | Minimum 30 cm to unlimited |
| Cutting Speed | Vertical cut: 10 m/min, Horizontal cut: 5 s/cut |
| Machine Weight | 600 kg |
| Maximum Power | 1.8 kW |
| Voltage | 380V/50HZ, 3-Phase |
* Customized models available to meet specific requirements

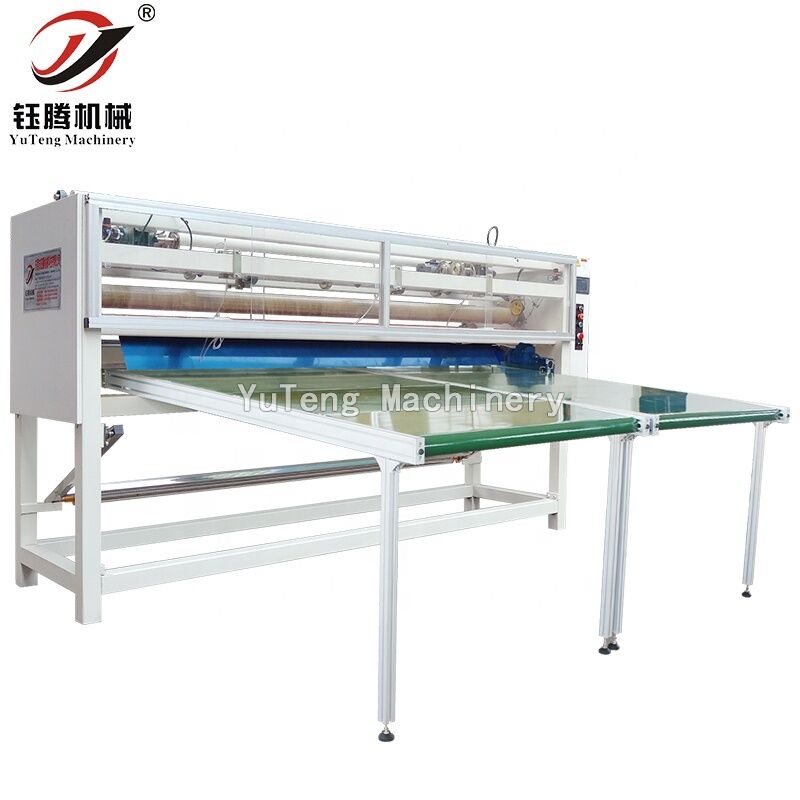

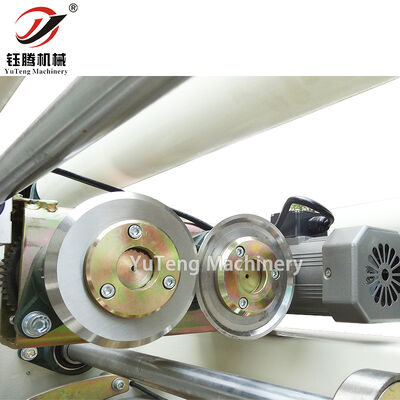

Product Images
Certification
Company Overview
この製品の詳細を知りたい
