詳細情報 |
|||
| 重さ: | 1300kg | 最大 X 寸法: | 2300mm |
|---|---|---|---|
| 最大Y寸法: | 300mm | 電源: | 380V/50Hz、220V/60Hz |
| 機械の寸法: | 3700mm*1100mm*1850mm | 操作空気圧: | 0.4～0.8MPa |
| 材料の厚さ: | 3-80mm | 切断速度: | 10(分/分) |
| 力: | 2.6kw | コアコンポーネント: | plc、モーター |
| 画面サイズ: | 7"タッチ画面 | 刃を切り開くこと: | 隠れた |
| 供給システム: | コンベヤベルトの機械的排出 | 制御タイプ: | 長さと幅の電気制御 |
| 圧力システム: | 記事ポイント付きフィードイントップ | ||
| ハイライト: | computer quilting fabric cutter,computerized fabric cutting machine,quilting fabric cutter with warranty |
||
製品の説明

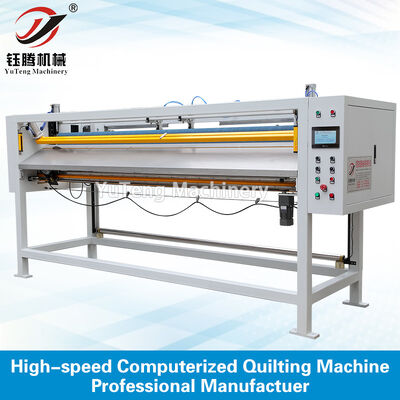

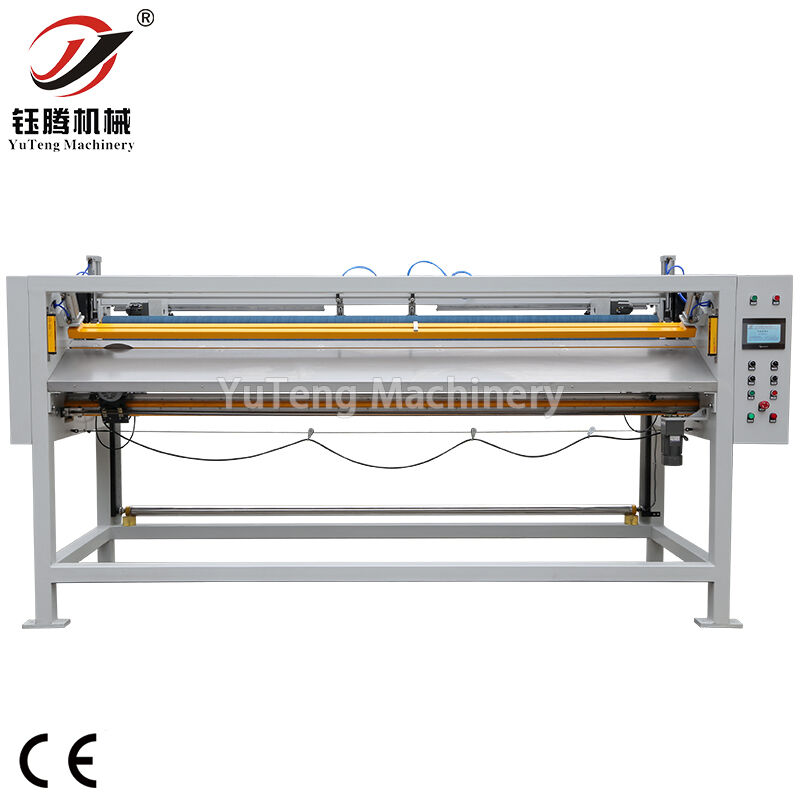

Computer Quilting Fabric Cutting Machine
Product Features
- 7" touch screen with large display for easy operation
- Hidden slitting blades for convenience and safety
- Electric controls for precise length and width cross-cutting
- Feed-in top with article points for even pressure distribution
- Y-dimension encoder for accurate length measurement
- Conveyor belt mechanical discharge for efficient material handling
Purpose

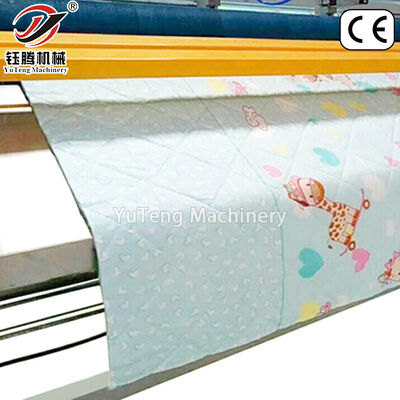

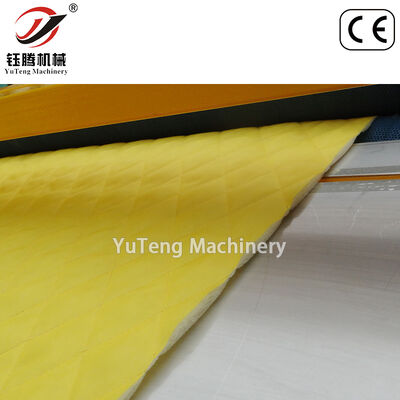

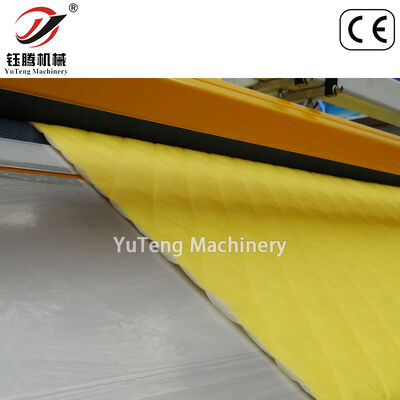

This machine performs crosscutting, slitting, and edge trimming of quilted fabric. It can operate in tandem with quilting machines and rolling devices, or function independently.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. X Dimension | 2300mm |
| Max. Y Dimension | 300mm |
| Power Supply | 380V/50HZ or 220V/60HZ |
| Dimensions (L×W×H) | 3700mm × 1100mm × 1850mm |
| Weight | 1300kg |
| Operating Air Pressure | 0.4~0.8Mpa |
| Material Thickness | 3-80mm |
| Speed | 10 M/Min |
| Power | 2.6KW |
Product Demonstration
Certifications
Company Information
Ordering & Support
- Delivery Time: Within 35 days after receiving 30% deposit
- Payment Terms: 30% deposit, 70% balance before shipment
- Shipping Options: FOB, CIF, CFR, etc.
- Warranty: One year comprehensive coverage
- Customization: Available to meet specific requirements
- After-Sales Service: Dedicated technical support
