詳細情報 |
|||
| 重さ: | 1150 kg | 寸法: | 3800×1280×2300mm |
|---|---|---|---|
| 切断長: | 600～2100mmまたは無制限 | 幅を切る: | 80～2600mm |
| 厚さ: | 60 mm | スピード: | 10m/分 |
| 力: | 3.2 KW | 空気圧: | 0.4-0.8 Mpa |
| 電圧: | 380V/50HZ、3-Phase 220V/60HZ | 画面サイズ: | 7インチ |
| 動作モード: | 光電センサー、エンコーダー | ブレードタイプ: | 双刃 |
| コアコンポーネント: | plc、モーター | コンテナサイズ: | 20GP |
| スライドボード: | はい | ||
| ハイライト: | computerized panel cutting machine with warranty,panel cutter for precise cuts,computerized cutting machine for panels |
||
製品の説明

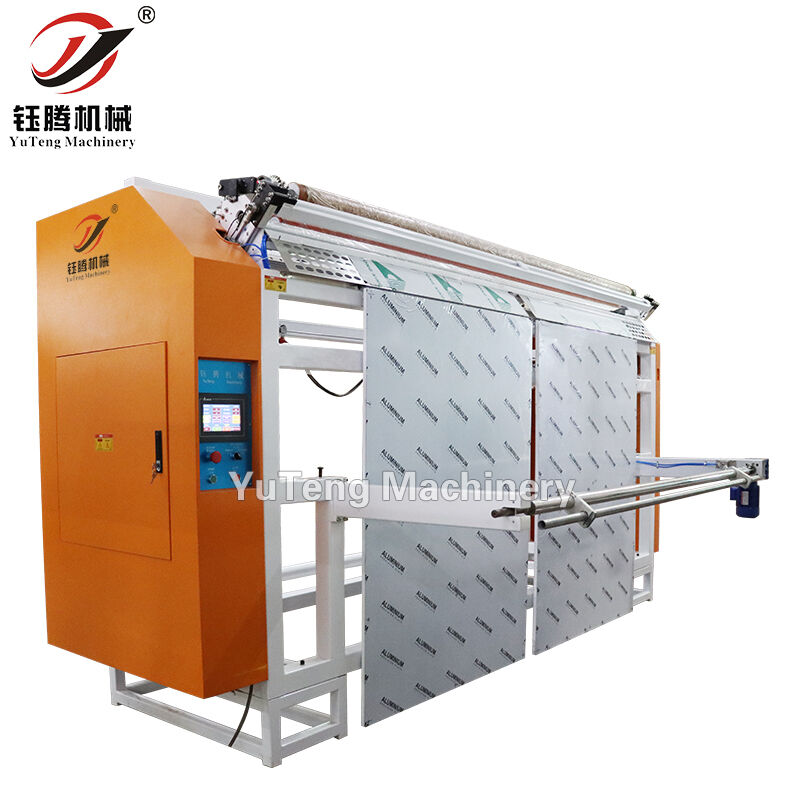

Computerized Panel Cutting Machine (Panel Cutter)
Technical Specifications
| Dimension (L x W x H) | 3800 x 1280 x 2300 mm |
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2600 mm |
| Thickness | 60 mm |
| Speed | 10 m/min |
| Power | 3.2 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ, 220V/60HZ, 3-Phase |
| Weight | 1150 KG |
Key Features
- User-friendly operation via 7-inch touch screen interface
- Dual operation modes: photoelectric sensor and encoder for versatile material cutting

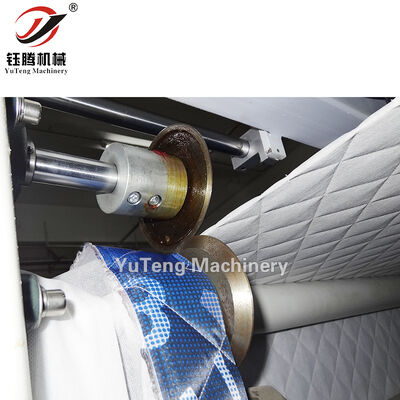

- Double-blade system ensures precise edge cutting

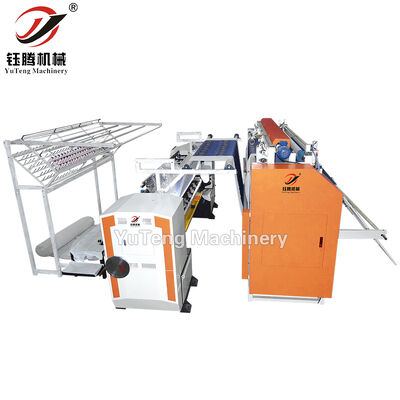

- Compatible with quilting machines or standalone operation

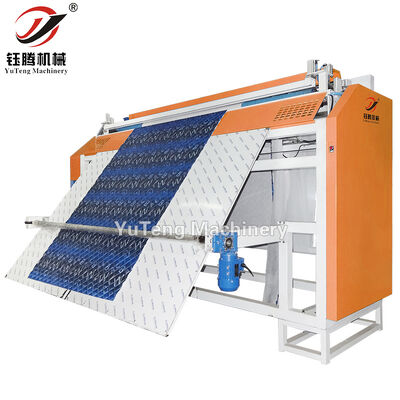

- Space-saving sliding board design optimizes factory floor space
- Compact shipping design fits in one 20GP container with quilting machine

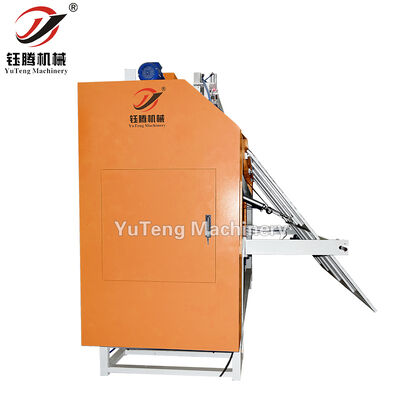

Machine Gallery
